ETD34(PIN16+16)
ETD34(PIN16+16)
ETD34(PIN16+16)
High power density and high efficiency Multiple-output is available Operating frequency up to 500kHz Power up to 6kW Custom designs available
Category:THT type
  • Specification parameters

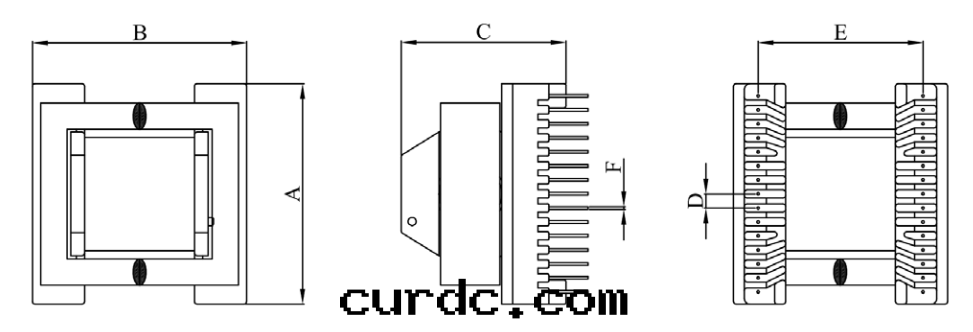

  • SizeA (MAX)B (MAX)C (MAX)D (Nom.)E (Nom.)F (Nom.)Pins (MAX)fsw (kHz)Power (W)²
    ETD34-444.037.525.52.525.5‌Φ0.816+1610080-150
