| Ordering Code | Inductance @1kHz (H Min.) | D.C.R. (Ω Max.) | Saturation Current (A)² | Temperature Rise Current (A)³ |
| DR8-001 | 500.0 | 1.250 | 0.25 | 0.55 |
| DR8-002 | 2200.0 | 5.600 | 0.25 | 0.25 |

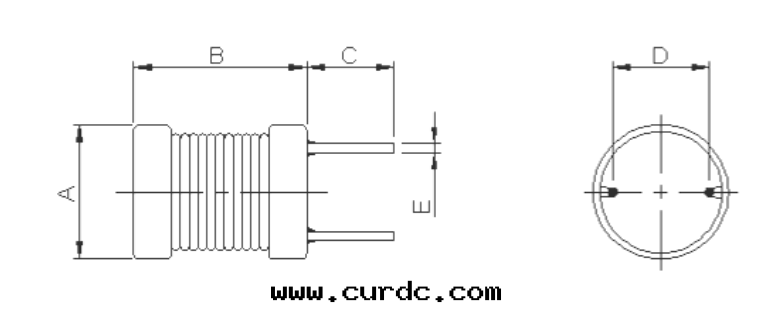

| Size | A (MAX) | B (MAX) | C (MAX) | D (Nom.) | E (Nom.) |
| DR8-001 | 9.0 | 9.0 | 5.0 | 5.0 | 0.6 |
| DR8-002 | 9.0 | 11.0 | 5.0 | 5.0 | 0.6 |
